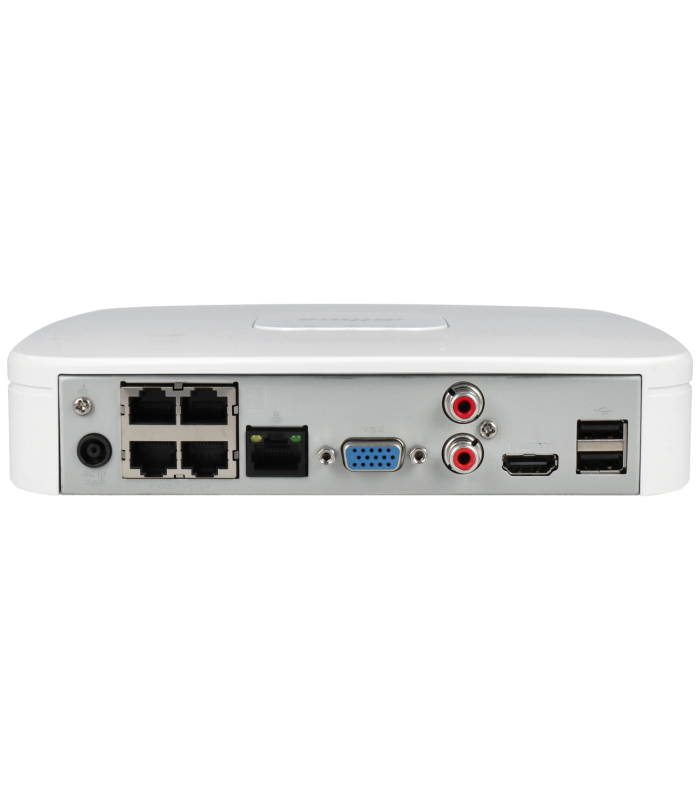

DAHUA ip recorder of 4 channel and 12 mpx resolution with 4 PoE ports

IP Channels : 4

Video compression : H.265 / H.264

Recording mode : Manual / Programado / Detección de movimiento / Alarma

Audio compression : PCM / G.711A / G.711U / G.726

Resolutions : 12Mpx / 8Mpx / 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx / D1

Input bandwidth : 80Mbps

Output bandwidth : 60Mbps

Maximum recording resolution : 12 Mpx

USB 2.0 : 2

Number of ports RJ45 : 1

Velocità RJ45 : 10 / 100 Mbps

Mobile devices : Android / IOS (Apple)

ONVIF : Yes

Remote vision : Web Browser (ActiveX) / Smartphone App / Smart PSS Software

PoE ports : 4

Type PoE : 802.3af

Software : SmartPSS

App : iDMSS / gDMSS

HDMI Output Number : 1

Number of VGA outputs : 1

Audio Inputs : 1

Audio Outputs : 1

Privacy Mask : Yes

SMD PLUS : Yes, 4 channels (human / vehicle classification)

Detección de movimiento : Yes

Processor : Industrial grade integrated processor

Operating system : Embedded LINUX

Simultaneous cameras in reproduction : 1 / 4

Playback functions : Play / Pause / Stop / Fast forward / Fast backward / Rewind / Play by frame / Full screen / Backup (cut/file) / Partially enlarge / Audio on/off

Backup mode : USB

Búsqueda inteligente : Yes

Synchronized playback : 4

Number of supported hard drives : 1

Maximum hard disk size (Unit) : 16 Tb

Type HDD : 3,5" SATA

Channels number with analytics : 4 channels

Material : Plastic

Dimensions : 204.6 x 206.4 x 45.6 mm

Net weight : 480 g

Weight with packaging : 1370 g

Installation : Desk / Rack

Chassis : Smart 1U

Operating temperature : -10 ºC ~ 55 ºC

Use : Indoor

Maximum humidity : 93%

Power mode : DC

Voltage : 48V ~ 53V

Consumption (w) : 10W

Amperage : 1250mA

Maximum consumption per port (PoE) : 25.5W

Maximum switch consumption (PoE Ports) : 36W
