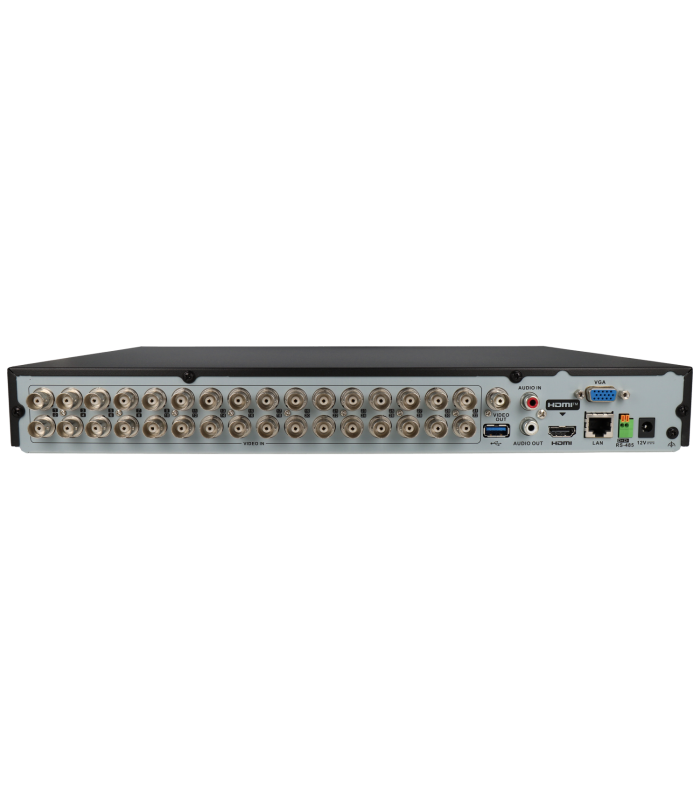

5 in 1 (hd-cvi, hd-tvi, ahd, analog and ip) recorder of 32 channel and 2 mpx maximum resolution

BNC channels : 32

Video formats : HDCVI / TVI / AHD / CVBS / IP

Admitted resolutions HDCVI : 4Mpx / 2mpx / 1Mpx

Admitted resolutions HDTVI : 4Mpx / 2Mpx / 1Mpx

Admitted resolutions AHD : 4Mpx / 2Mpx / 1Mpx

Cameras CVBS : Yes

Accepted IP cameras : 32 cámaras BNC + 2 cámaras IP

Resolution IP cameras : 6 Megapíxeles

IP Channels : 34, replacing the BNC channels

Video compression : H.265 / H.264

Resolution HDCVI recording : 2 Megapixel (1080p)

Resolution HDTVI recording : 2 Megapixel (1080p)

Resolution recording AHD : 2 Megapixel (1080p)

Images per second Main stream : 4Mpx Lite / 1080P (15 fps) / 720P / VGA / WD1 / 4CIF / CIF (25fps)

Images per second Extra stream : WD1 / 4CIF (1 ~12fps) / CIF (1 ~ 25fps)

Video bit rate : 32 Kbps ~ 6 Mbps

Audio compression : G.711U

Speed audio bits : 64Kbps per channel

Maximum recording resolution : 2 Mpx

HDMI Output Number : 1

Number of VGA outputs : 1

Number of BNC outputs : 1

Resolution HDMI : 4Mpx

Resolución VGA : 1080P

Resolution BNC : 704 x 576

Audio Inputs : 1

Audio Outputs : 1

Audio bidirectional (Full-duplex) : Yes

Number of supported hard drives : 2

Maximum hard disk size (Unit) : 10 TB

Type HDD : 3,5" SATA

USB 2.0 : 1

USB 3.0 : 1

RS485 : 1

Búsqueda inteligente : Yes

Synchronized playback : 16

Number of ports RJ45 : 1

Velocità RJ45 : 10 / 100 / 1000 Mbps

Maximum number of users : 128

Mobile devices : Android / IOS (Apple)

ONVIF : Yes

Remote vision : Web Browser / Smartphone App and Hik-Connect Software.

Software : IVMS

App : Hik-Connect

Clasificación humano / vehículo : Yes

Detección de movimiento : Sí, 2.0 en todos los canales analógicos

Material : Metal

Dimensions : 385 x 315 x 52 mm

Net weight : 2000 g

Weight with packaging : 3200 g

Installation : Desk / Rack

Operating temperature : -10 ºC ~ 55 ºC

Use : Indoor

Maximum humidity : 90%

Power mode : DC

Voltage : 12V

Consumption (w) : 40W

Amperage : 3300mA
