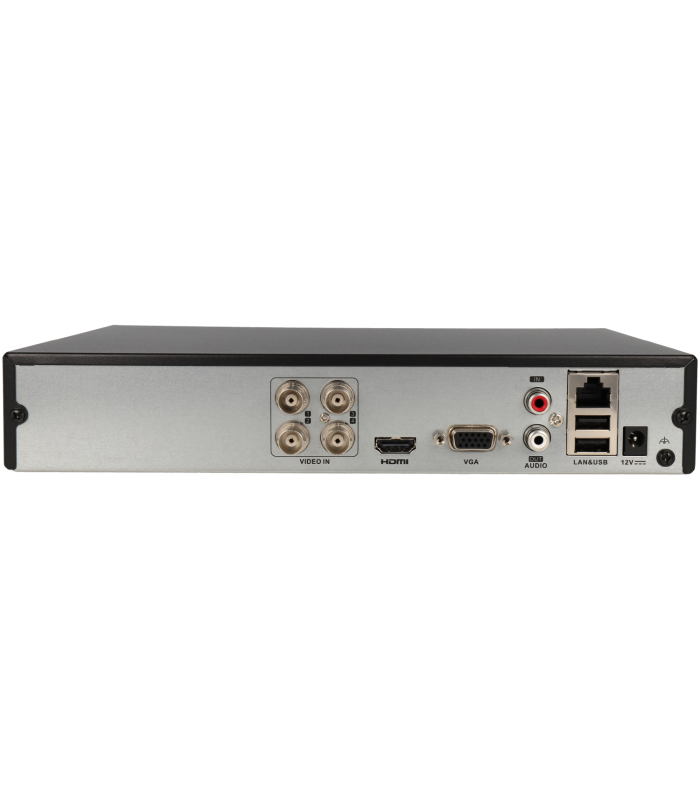

5 in 1 (hd-cvi, hd-tvi, ahd, analog and ip) recorder of 4 channel and 4 mpx maximum resolution

BNC channels : 4

Video formats : HDCVI / TVI / AHD / CVBS / IP

Admitted resolutions HDCVI : 4Mpx / 2mpx / 1Mpx

Admitted resolutions HDTVI : 4Mpx / 2Mpx / 1Mpx

Admitted resolutions AHD : 4Mpx / 2Mpx / 1Mpx

Cameras CVBS : Yes

Accepted IP cameras : 4 BNC cameras + 2 IP cameras

Resolution IP cameras : 6 Megapíxeles

IP Channels : 6, replacing the BNC channels

Video compression : H.265 / H.264

Compression IP cameras : H.265+ / H.265 / H.264+ / H.264

Resolution HDCVI recording : 4 Megapixeles

Resolution HDTVI recording : 4 Megapíxeles

Resolution recording AHD : 4 Megapíxeles

Images per second Main stream : 4Mpx (8fps) / 4Mpx Lite / 1080P / 720P / WD1 / 4CIF / VGA / CIF (15fps)

Images per second Extra stream : WD1 / 4CIF / 2CIF (12fps) / CIF / QVGA / QCIF (25fps)

Video bit rate : 32 Kbps ~ 6 Mbps

Audio compression : G.711U

Speed audio bits : 64Kbps per channel

Maximum recording resolution : 4 Mpx

HDMI Output Number : 1

Number of VGA outputs : 1

Resolution HDMI : 1080P

Resolución VGA : 1080P

Audio Inputs : 1

Audio Outputs : 1

Audio bidirectional (Full-duplex) : Yes

Number of supported hard drives : 1

Maximum hard disk size (Unit) : 10 TB

Type HDD : 3,5" SATA

USB 2.0 : 2

Synchronized playback : 4

Number of ports RJ45 : 1

Velocità RJ45 : 10 / 100 Mbps

Maximum number of users : 32

Mobile devices : Android / IOS (Apple)

ONVIF : Yes

Remote vision : Web Browser / Smartphone App and Hik-Connect Software.

App : Hik-Connect

Material : Metal

Dimensions : 260 x 222 x 45 mm

Net weight : 830 g

Weight with packaging : 1300 g

Installation : Desk / Rack

Operating temperature : -10 ºC ~ 55 ºC

Use : Indoor

Maximum humidity : 90%

Power mode : DC

Voltage : 12V

Consumption (w) : 8W

Amperage : 1500mA
